Fast Wheels crafts each wheel with high quality alloy and engineers all wheels for optimized fuel economy, improved acceleration and cornering. All wheels are tested to exceed JWL, VIA and SAE standards and CASS (salt spray) corrosion tested.

View available fitments for your Mazda using the "Applications" tab!

• Details
• Specifications
• Applications

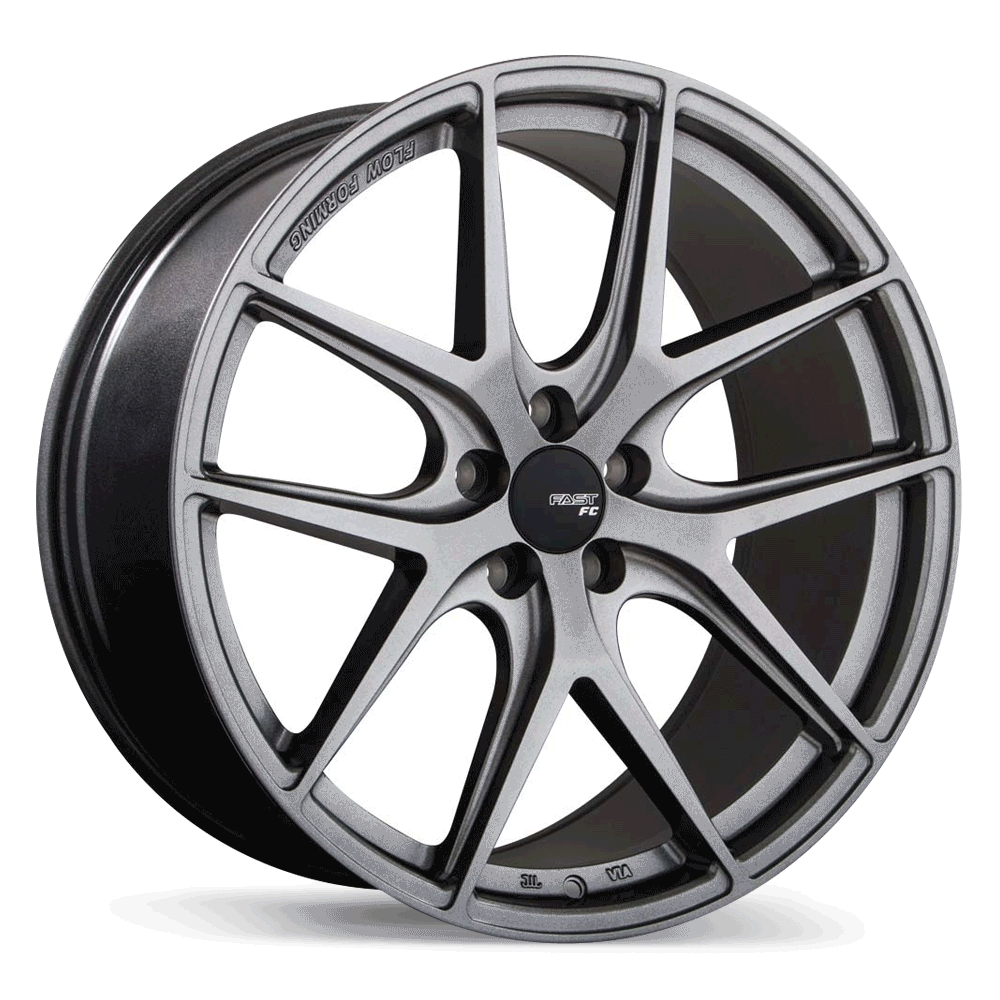

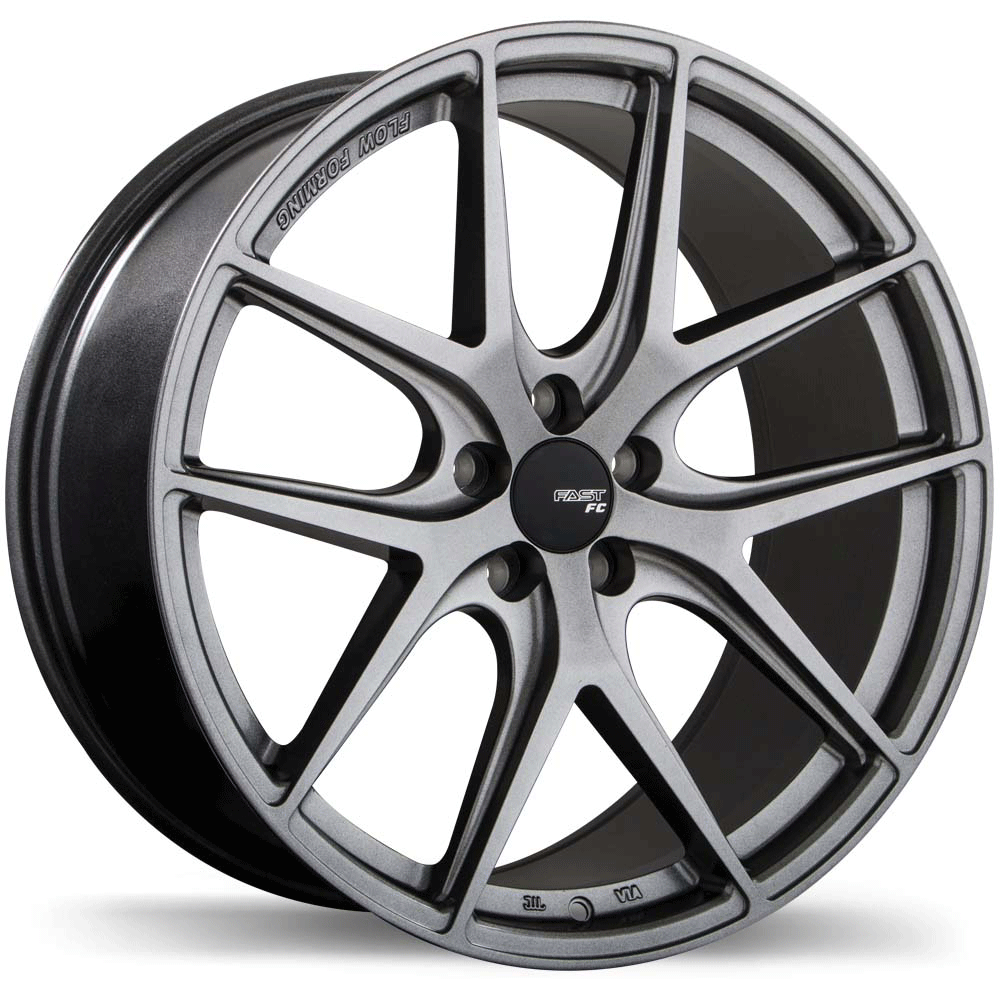

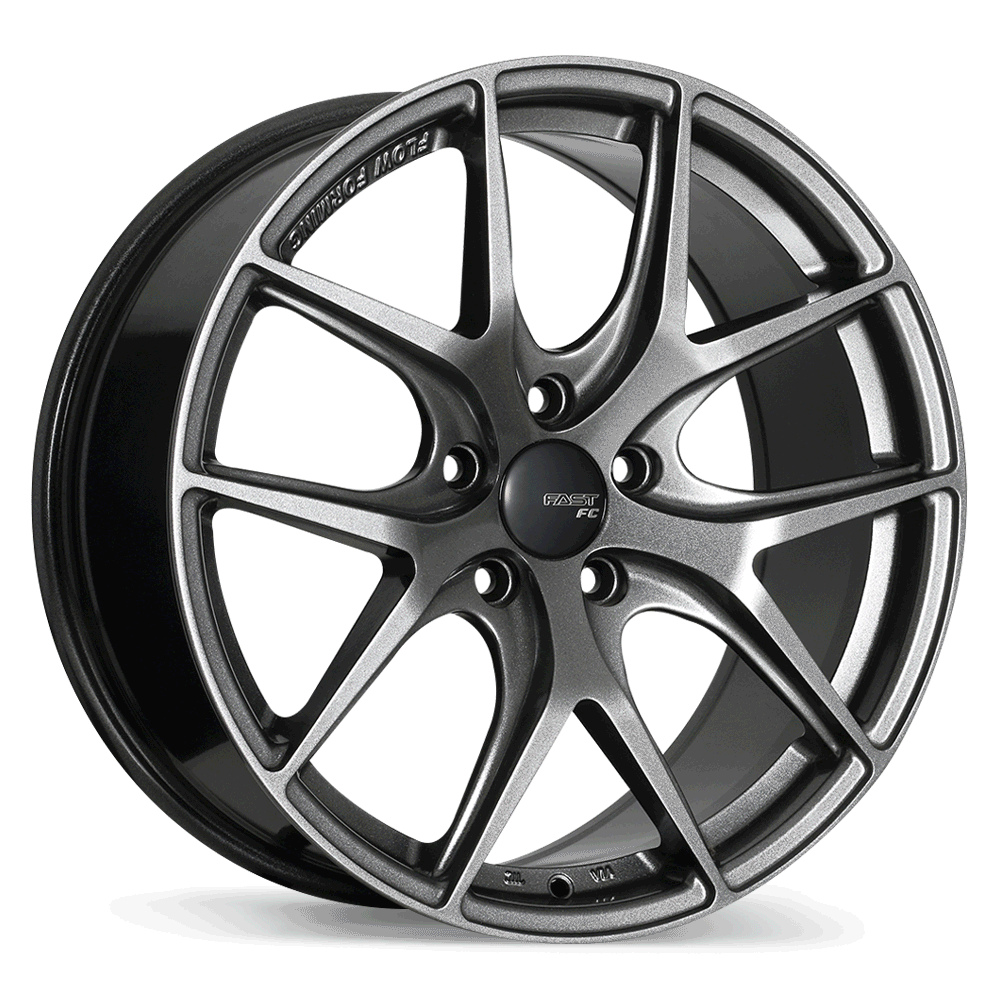

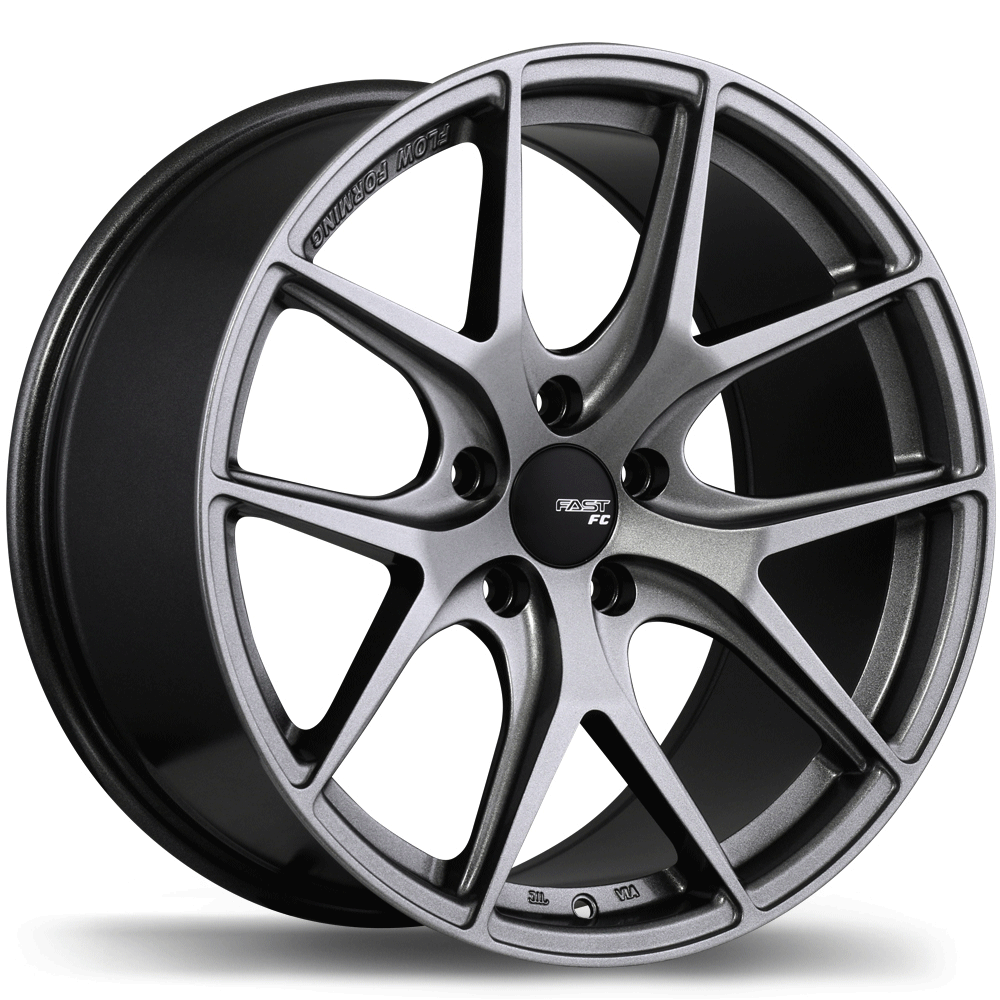

• • Five (5) Y-spoke design
  • Available in 17", 18", 19", 20" diameters
  • Stunning Titanium Finish
  • Lightweight, high-performance, single-piece alloy construction

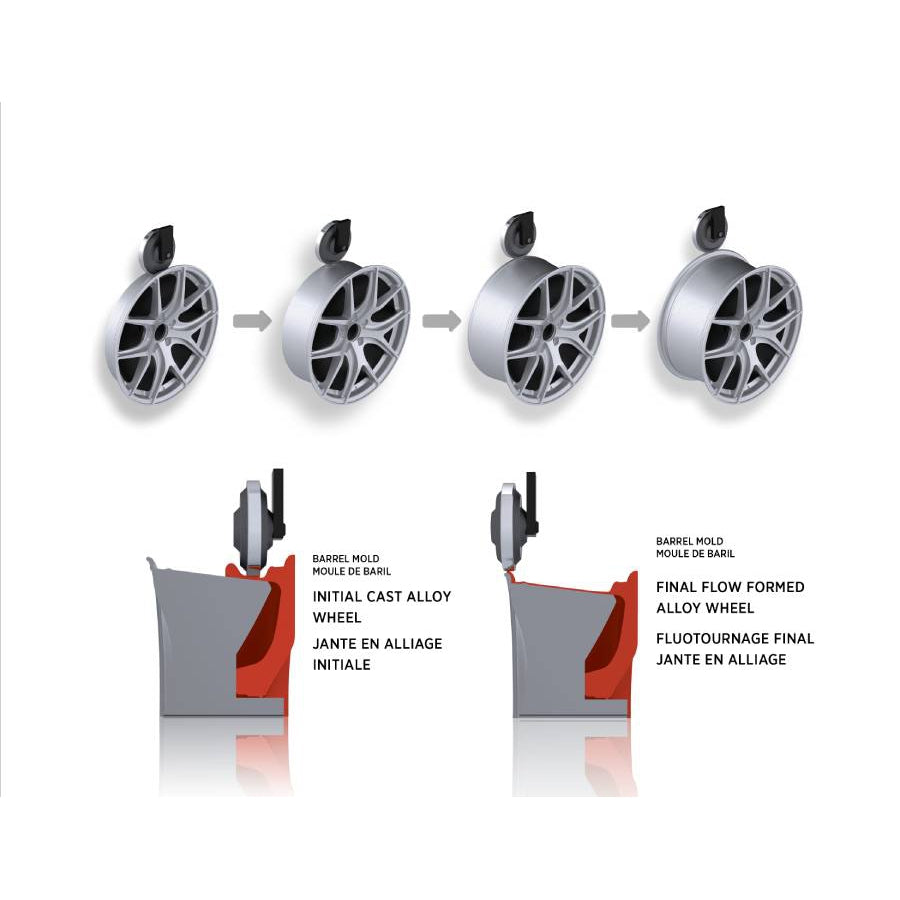

  • Made using Flow Forming technology, maximizing both strength and affordability
  • Satin Black Centre Cap with Chrome Outline Fast FC logo
  • Optional: Exclusive Fast Wheels FC Red Center Cap
  • Certifications: JWL, VIA

• • Style #: FC04
  • Finish: Titanium
  • Wheel Diameter: 17", 18", 19", 20"
  • Pitch Circle Diameter (PCD): 5×114.3mm

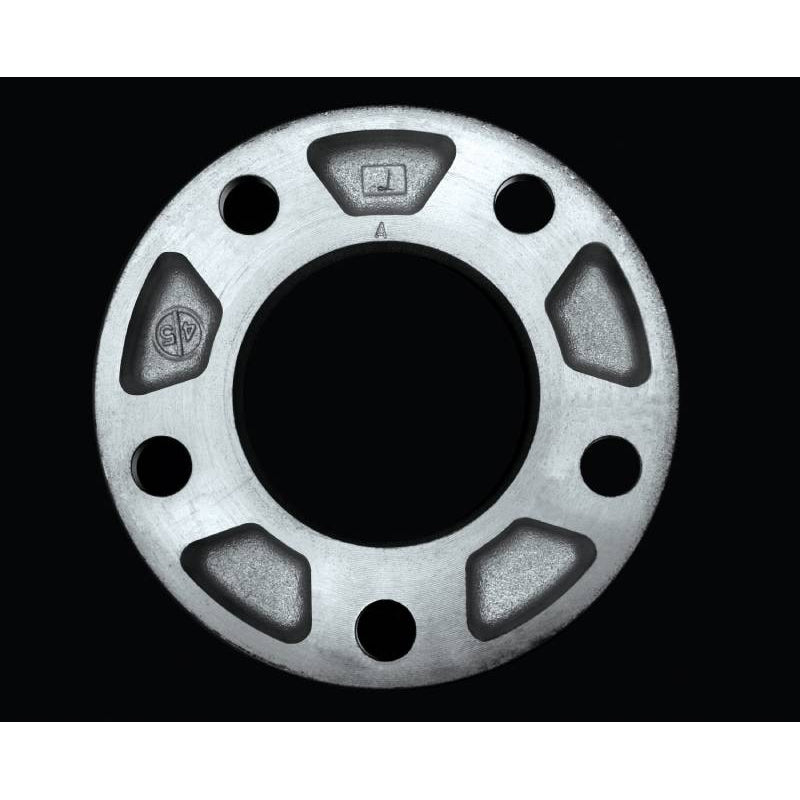

  • Hub Bore Diameter: 72.6mm
  • Lug Seat: 60° Conical
  • All-Season Approved: Yes

  Wheel Size	Offset (mm)	Weight (lbs./kg)	Load Rating (lbs./kg)
  17"×8.0"	+45	16.6/7.5	1521/690
  17"×8.0"	+35	17.4/7.9	1521/690
  18"×8.0"	+40	18.8/8.5	1521/690
  18"×8.0"	+30	19.4/8.8	1521/690
  18"×9.0"	+40	19.0/8.6	1521/690
  18"×9.0"	+30	19.2/8.7	1521/690
  19"×8.5"	+45	20.8/9.4	1521/690
  19"×8.5"	+35	21.4/9.7	1521/690
  19"×9.5"	+45	20.0/9.1	1521/690
  19"×9.5"	+35	20.4/9.3	1521/690
  20"×8.5"	+45	22.8/10.3	1797/815
  20"×8.5"	+35	23.8/10.8	1797/815
  20"×9.5"	+45	23.4/10.6	1797/815
  20"×9.5"	+35	24.2/11.0	1797/815

• Wheel Size, Offset	17"×8.0", +45mm	17"×8.0", +35mm	18"×8.0", +40mm	18"×8.0", +30mm	18"×9.0", +40mm	18"×9.0", +30mm
  CX-3	2016-2022⚠️ New tires required High-Type Center Cap required	2016-2022⚠️ New tires required	2016-2022⚠️ New tires required High-Type Center Cap required	❌	❌	❌
  CX-30	2020-2025⚠️ New tires required High-Type Center Cap required	2020-2025⚠️ New tires required	2020-2025⚠️ New tires required High-Type Center Cap required	❌	❌	❌
  CX-5	2013-2025⚠️ High-Type Center Cap required	2013-2025✔️	2013-2025⚠️ New tires required High-Type Center Cap required	2013-2025✔️	2013-2025⚠️ New tires required High-Type Center Cap required	❌
  CX-50	2023-2025✔️	2023-2025✔️	2023-2025✔️	2023-2025✔️	2023-2025⚠️ New tires required	2023-2025⚠️ New tires required
  CX-7	2007-2012	2007-2012	2007-2012	2007-2012	2007-2012	❌
  CX-9	❌	❌	2007-2015	2007-2015	2007-2015	2007-2015
  Mazda3	2014-2025⚠️ New tires required High-Type Center Cap required	2014-2025⚠️ New tires required Aggressive Fitment	2014-2025⚠️ Aggressive Fitment High-Type Center Cap required	❌	❌	❌
  Mazda6	2009-2021⚠️ New tires required	2009-2021⚠️ New tires required	2009-2021⚠️ New tires required High-Type Center Cap required	❌	2014-2017⚠️ New tires required High-Type Center Cap required	❌
  RX-8	2004-2011✔️	2004-2011✔️	2004-2011✔️	2004-2011✔️	2004-2011⚠️ New tires required High-Type Center Cap required	2004-2011*⚠️ New tires required High-Type Center Cap required

  Wheel Size, Offset	19"×8.5", +45mm	19"×8.5", +35mm	19"×9.5", +45mm	19"×9.5", +35mm	20"×8.5", +45mm	20"×8.5", +35mm	20"×9.5", +35mm
  CX-3	2016-2022⚠️ New tires required	❌	❌	❌	❌	❌	❌
  CX-30	2020-2025⚠️ New tires required	❌	❌	❌	2020-2025⚠️ New tires required	❌	❌
  CX-5	2013-2024	2013-2024	2013-2024	2013-2024	2013-2024	2013-2024	❌
  CX-50	2023-2024	2023-2024	2023-2024	2023-2024	2023-2024	2023-2024	❌
  CX-7	2007-2012	2007-2012	❌	❌	2007-2012	2007-2012	❌
  CX-9	2007-2015	2007-2015	2007-2015	2007-2015	2007-2023	2007-2023	2016-2023
  Mazda6	2009-2021	2014-2017	2014-2017	❌	2009-2021	2014-2017	❌
  RX-8	2004-2011✔️	2004-2011✔️	2004-2011⚠️ New tires required High-Type Center Cap required	2004-2011*⚠️ New tires required High-Type Center Cap required	2004-2011⚠️ New tires required	2004-2011⚠️ New tires required	2004-2011*⚠️ New tires required High-Type Center Cap required

  • ✔️: Applicable/approved fitment with OE tire size
  • ⚠️: Aggressive fitment and/or requires Different Tire Size from factory (Contact us for more specific details)
  • ❌: Not applicable
  • *Specific to RX-8 models, Staggered Rear Width setup available:
  • Front: 18"×8.0",+40mm | Rear:18"×9.0", +40mm
  • Front: 18"×8.0",+40mm | Rear:18"×9.0", +30mm
  • Front: 18"×8.0",+30mm | Rear:18"×9.0", +40mm
  • Front: 18"×8.0",+30mm | Rear:18"×9.0", +30mm
  • Front: 19"×8.5",+45mm | Rear:19"×9.5", +45mm
  • Front: 19"×8.5",+45mm | Rear:19"×9.5", +35mm
  • Front: 19"×8.5",+35mm | Rear:19"×9.5", +45mm
  • Front: 19"×8.5",+35mm | Rear:19"×9.5", +35mm
  • Front: 20"×8.5",+45mm | Rear:20"×9.5", +35mm
  • Front: 20"×8.5",+35mm | Rear:20"×9.5", +35mm

  All listed sizes for each vehicle are wheel manufacturer-recommended fitments based on factory vehicle suspension components, and no vehicle modifications should be necessary.

  Should your vehicle have any modifications, then we can no longer guarantee fitment to your vehicle. If your Mazda is not listed, then this wheel does not have an appropriate size available for your vehicle.

About Fast Wheels

Fast Wheels is a proudly Canadian alloy wheel brand dedicated to covering a wide range of wheel styles and fitments for all types of passenger vehicles. Their team has over 30 years experience in wheels, and our products are a testament to our enthusiasm and wealth of industry knowledge.

Fast Wheels is committed to overseeing each step of a wheel’s existence. From the moment it’s conceived on the computer screen to its birth in the casting machine, each step of the manufacturing process is closely monitored. The wheel is seen through a series of certification tests right down to the finishing and packaging, making sure your wheels are constructed with the highest quality control standards in the industry.
