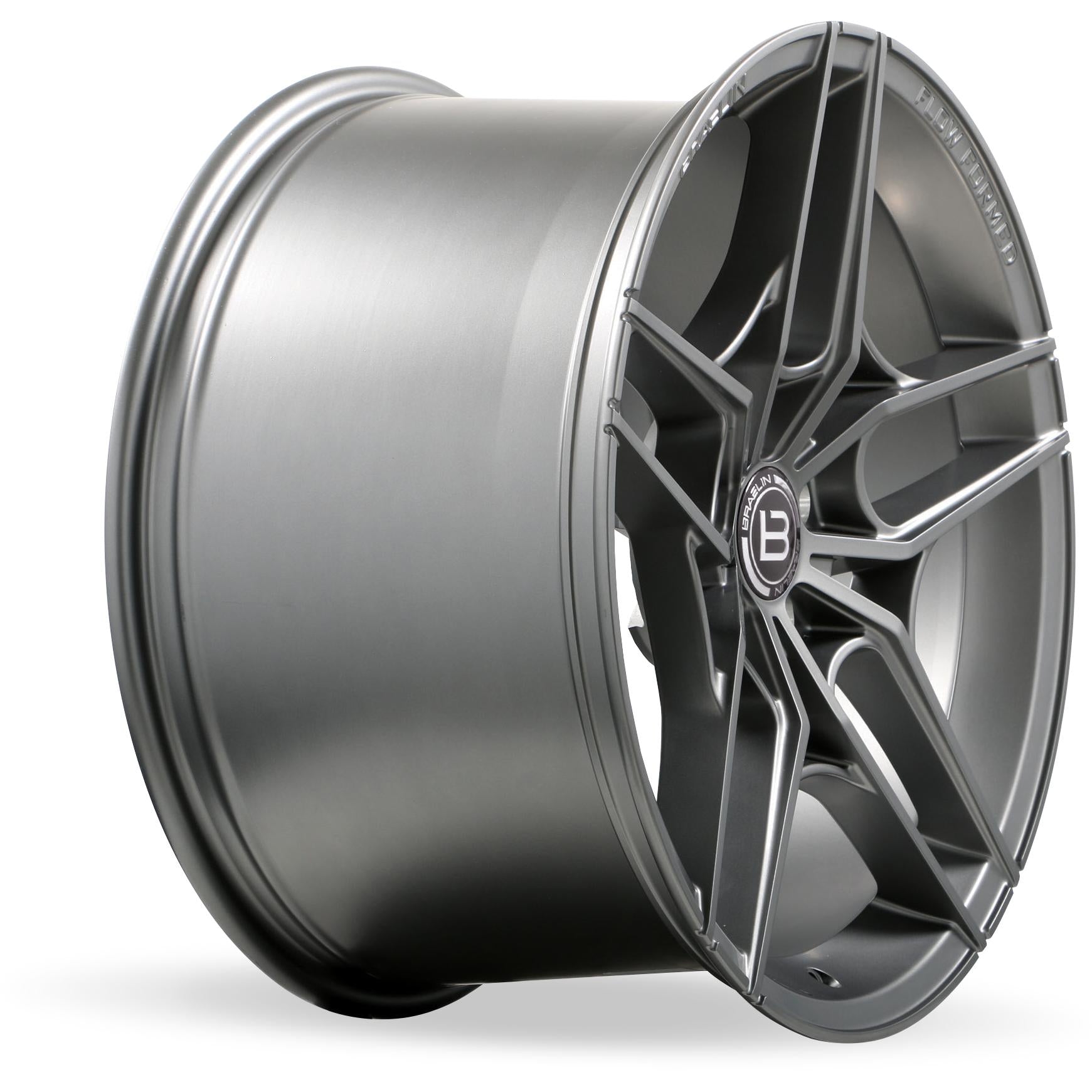

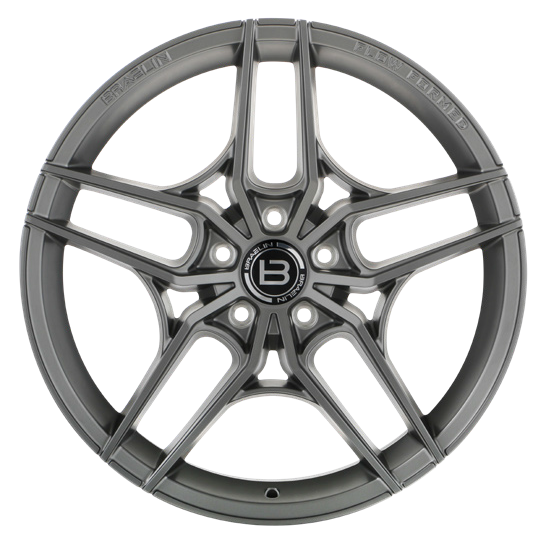

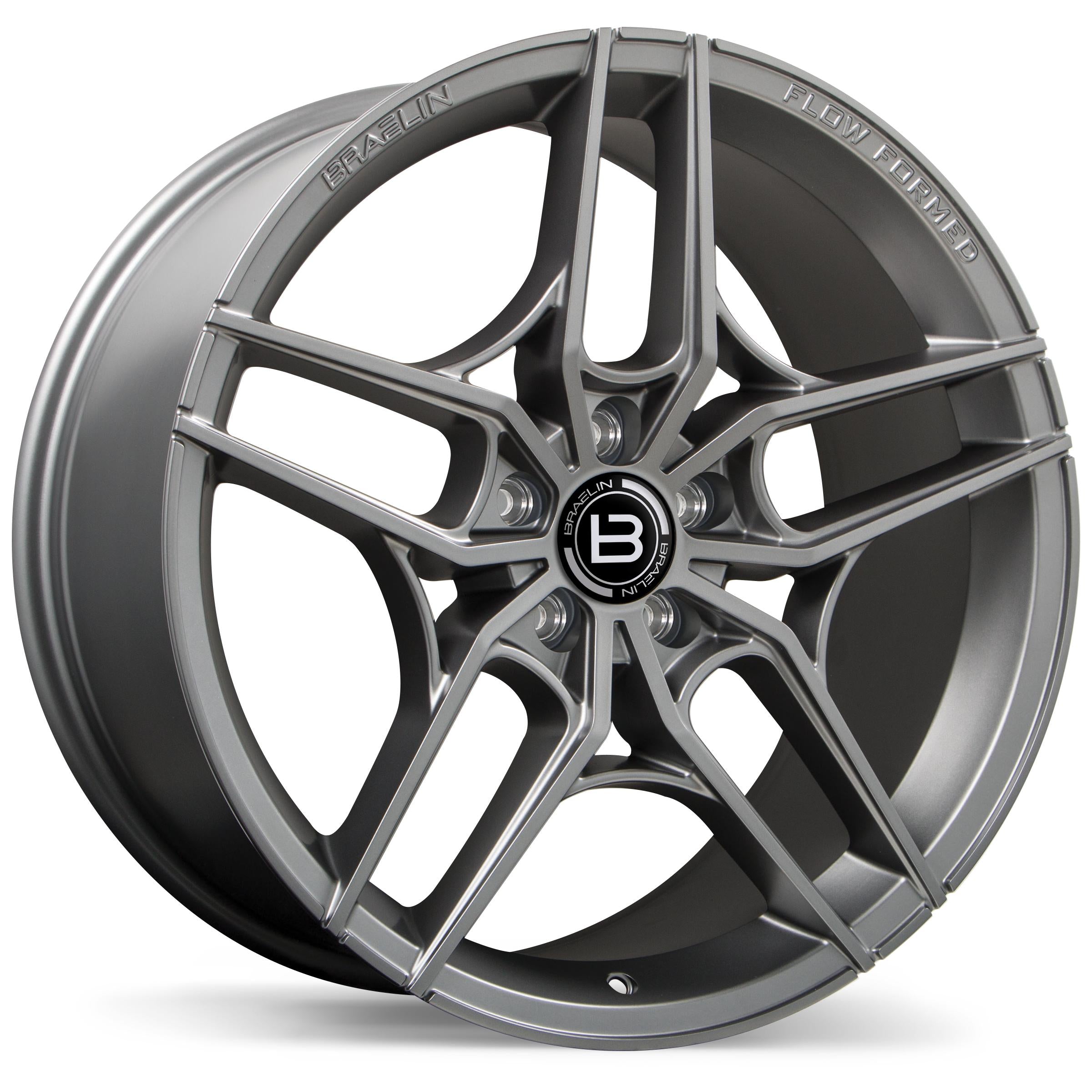

  • BRAELIN BR12 Alloy Wheel (Satin Charcoal) — 19"

    Looking for some uniqueness for your ride? Check out the BRAELIN BR12! These wheels benefit feature precision milling techniques which reduces the overall weight while providing incredibly intricate details. Finished in Satin Charcoal, these wheels will distinguish your vehicle from all the rest!

    These Braelin alloys are Flow Form constructed, making them much lighter and stronger than a typical cast construction. To achieve Flow Form, the wheels are spun during the molding process, which alters the molecular structure of the aluminum alloy used. This reduces weight while also improving the structural strength of the wheel. This is the ideal combination of form and function, especially for high-performance vehicles.

    View available fitments for your Mazda using the "Applications" tab!

    Wheel Size and Offset
      • Design: Twin-Arm 5-Spoke
      • Diametre: 19"
      • Lightweight, high performance, single-piece alloy construction
      • Flow Formed Barrel for reduced weight and increased strength
      • Precision milling process on wheel face for weight reduction while adding unique design features
      • Captivating Satin Charcoal Finish
      • "BRAELIN" and "FLOW FORMED" embossed on lip
      • Black Centre Cap with machined BRAELIN crest logo
      • Approved for all-weather driving conditions
      • VIA and JWL certifications
      • Style #: BR12
      • Finish: Satin Charcoal
      • Pitch Circle Diameter (PDC: 5×114.3mm
      • Hub Bore Diameter: 67.1mm
      • Lug Seat: 60° Conical
      Size Offset (mm) Weight (lbs.) Load Rating (lbs./kg)
      19"×9.0" +40 25.0 1984/900
      19"×9.0" +35 25.2 1984/900
      19"×9.0" +30 25.4 1984/900
    • Wheel Size,
      Offset
      19"×9.0",
      +40
      19"×9.0",
      +35
      19"×9.0",
      +30
      CX-5
      2013-2024 2013-2016
      CX-50
      2023-2024
      CX-7 2007-2012 2007-2012
      CX-9 2007-2023 2007-2023 2007-2023
      CX-90 2024 2024 2024
      Mazda6 2014-2017 2014-2017
      RX-8 2004-2011 2004-2011


        Since there are several application combinations possible, we've highlighted the easiest sizes to fit your Mazda. All listed sizes for each vehicle are wheel manufacturer-recommended fitments based on factory vehicle suspension components, and no vehicle modifications should be necessary.

        Should your vehicle have any modifications, then we can no longer guarantee fitment to your vehicle. If your Mazda is not listed, then this wheel does not have an appropriate size available for your vehicle.

      Special Notes

      • Extra processing required; minimum lead time 7 business days prior to shipping availability
      • Not included:
      • Please ensure you select the correct size of wheels for your vehicle
        • If you choose to upsize or downsize, the corresponding tire size must also be changed
        • If you are unsure of your sizing, please contact us and we'll be more than happy to help!
      • Installation Option Available: Please contact us for further details
      • Please review our Shipping Policies prior to purchase

      About BRAELIN Wheels

      Braelin Wheels is a proudly Canadian alloy wheel brand dedicated to covering a wide range of wheel styles and fitments for the luxury, premium passenger vehicles and SUV’s. Their team has over 30 years experience in wheels, and our products are a testament to our enthusiasm and wealth of industry knowledge.

      Braelin is committed to overseeing each step of a wheel’s existence. From the moment it’s conceived on the computer screen to its birth in the casting machine, each step of the manufacturing process is closely monitored. The wheel is seen through a series of certification tests right down to the finishing and packaging, making sure your wheels are constructed with the highest quality control standards in the industry.
