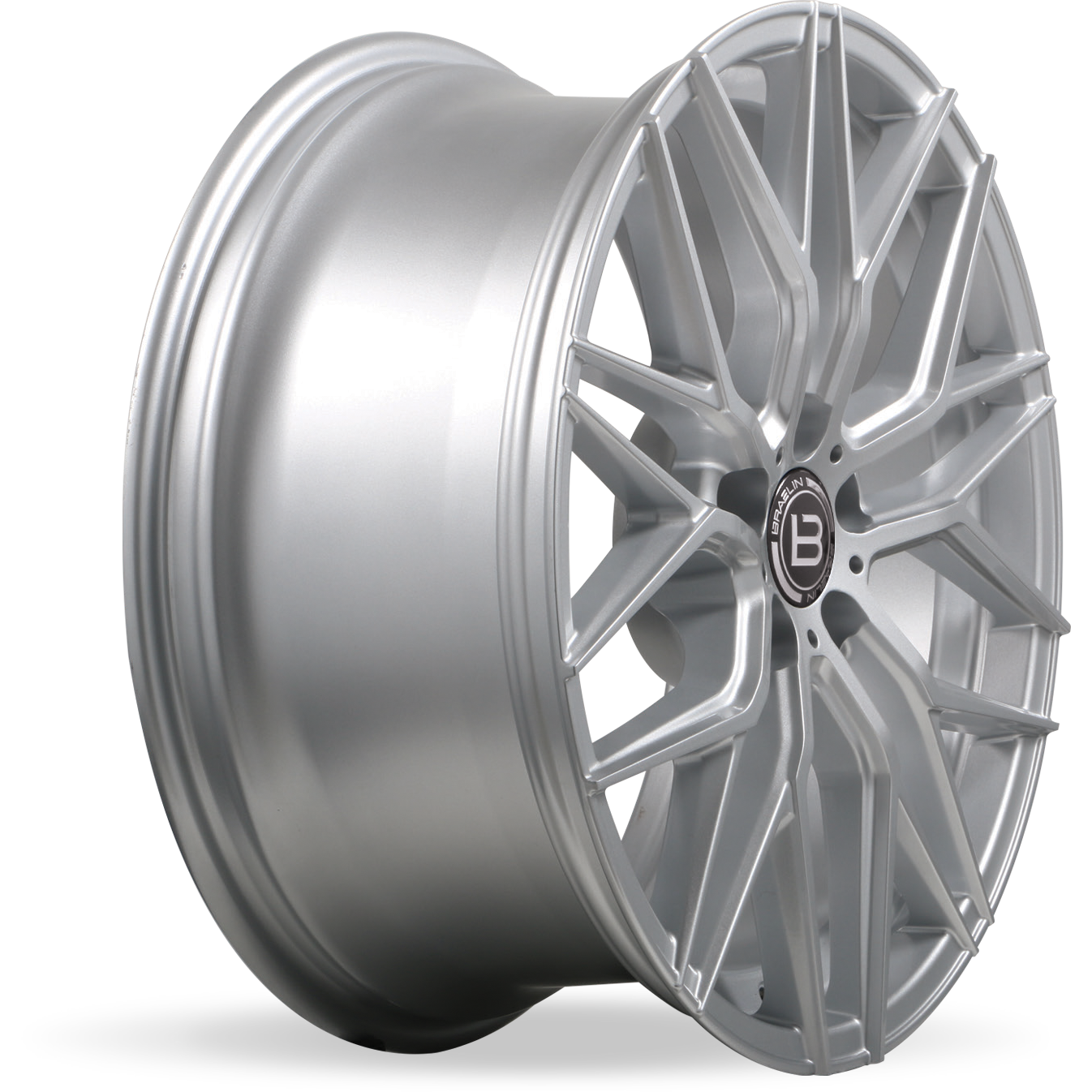

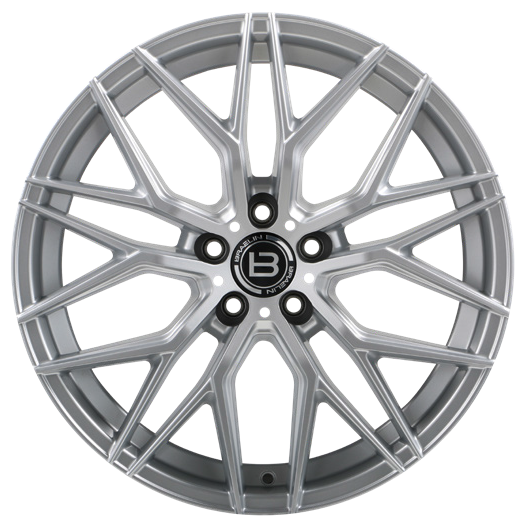

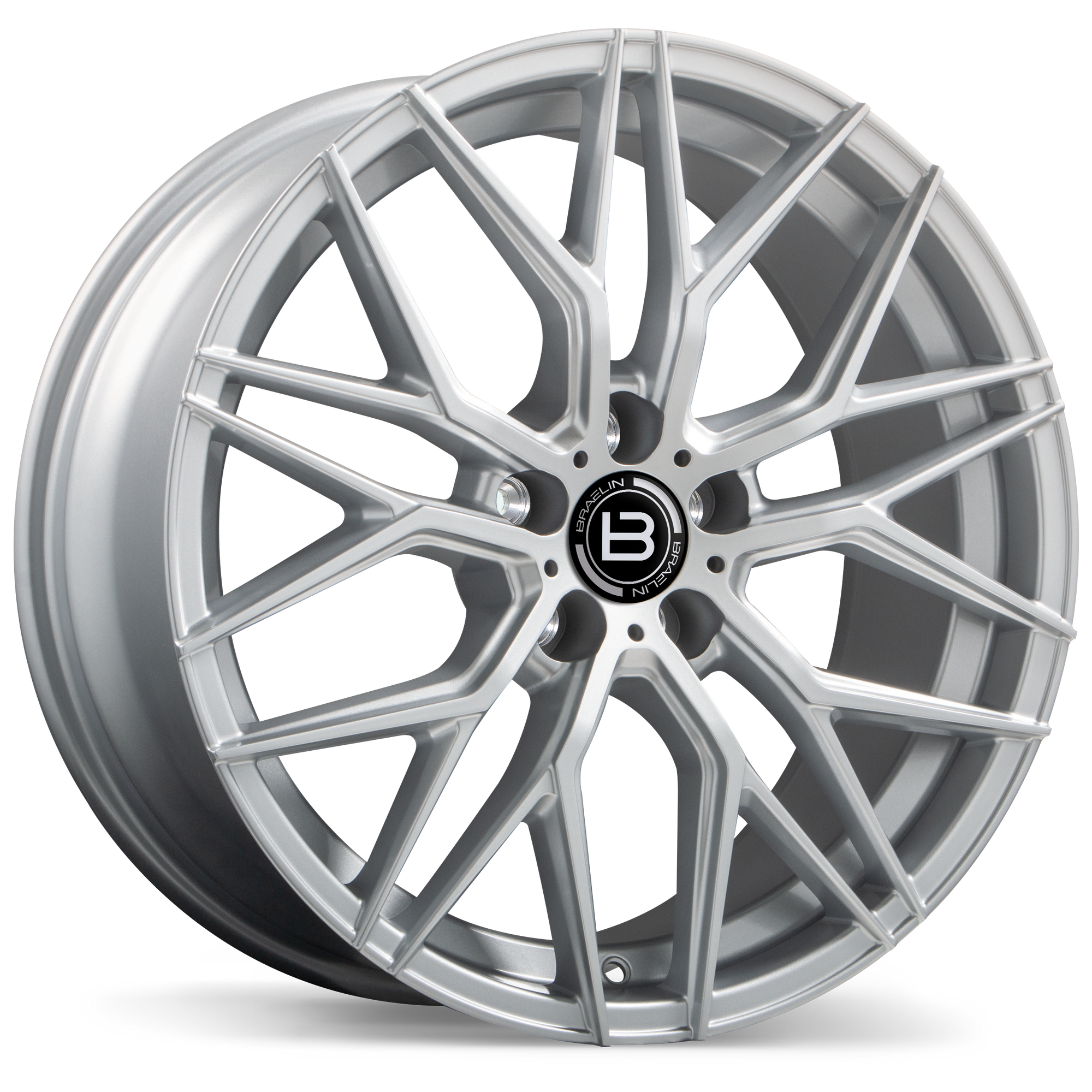

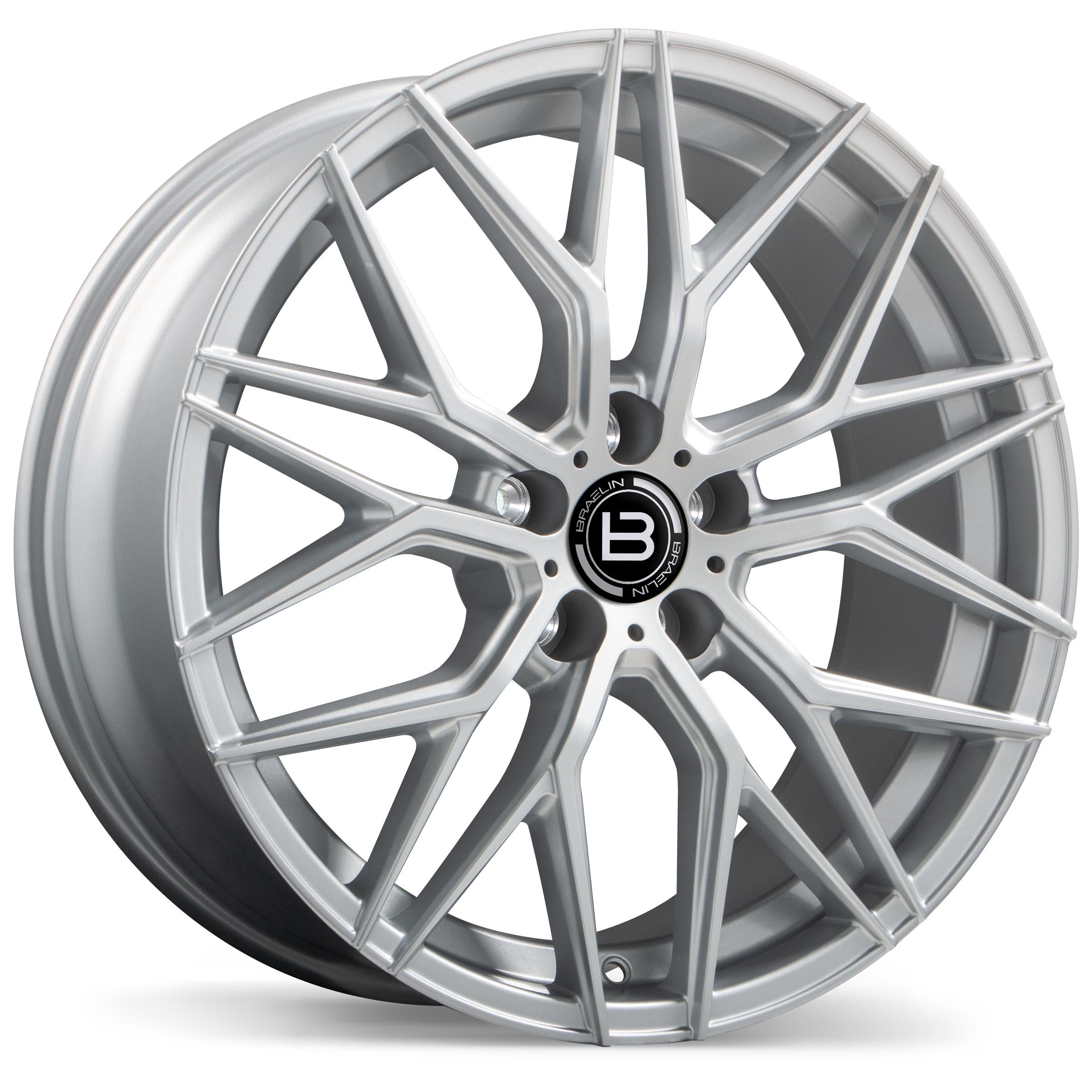

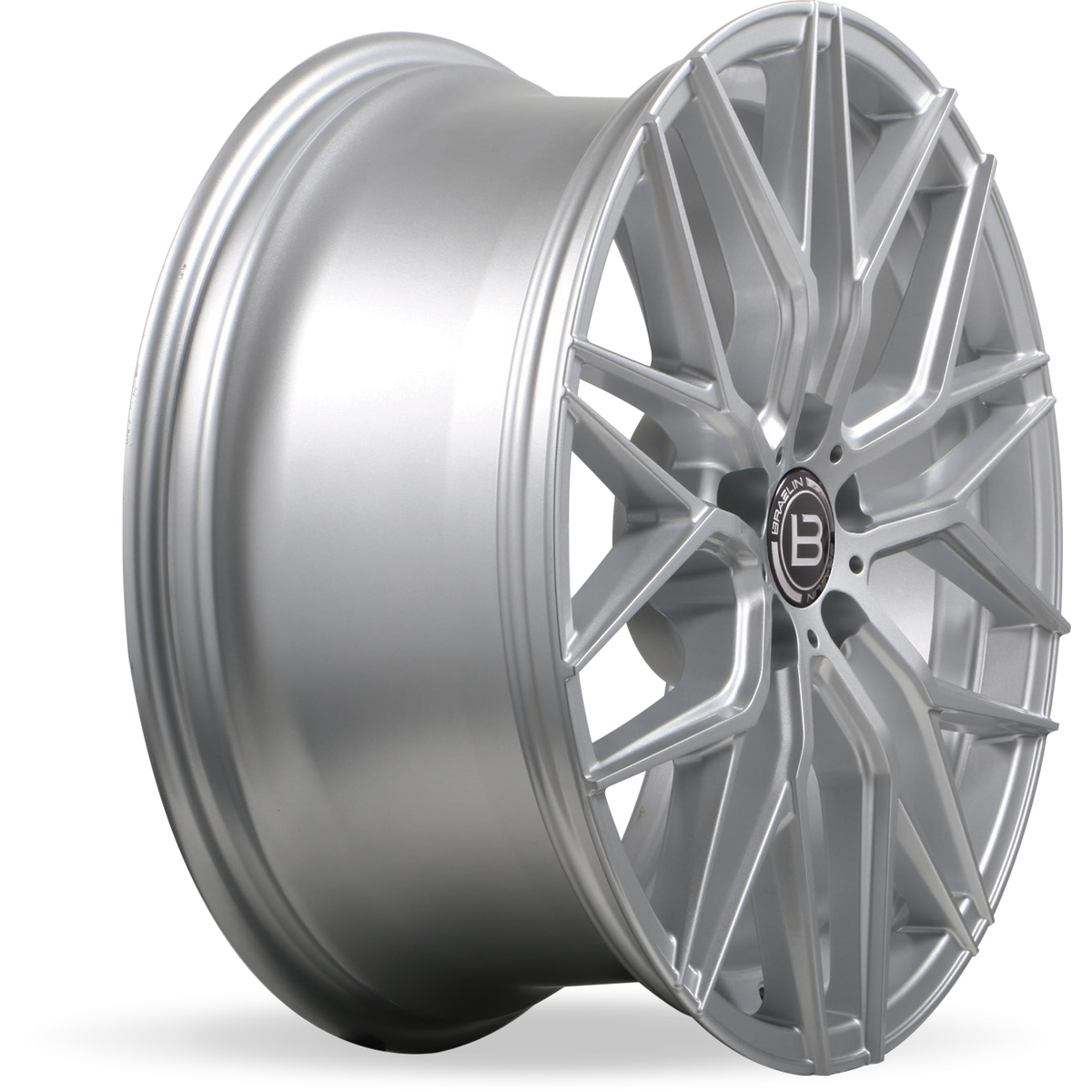

  • BRAELIN BR10 Alloy Wheel (Gloss Silver) — 18", 19", 20"

    Looking for a wheel to stand out from all the rest? Look no further than the BRAELIN BR10! This alloy wheel exudes a strong and sophisticated presence with its face design, which is enhanced with precision milling techniques. This helps both aesthetically and with performance by providing levels of depth with each spoke whilst reducing the overall mass. Complete with a bright Silver finish, these wheels are a bold statement piece your vehicle!

    These Braelin alloys are Flow Form constructed, making them much lighter and stronger than a typical cast construction. To achieve Flow Form, the wheels are spun during the molding process, which alters the molecular structure of the aluminum alloy used. This reduces weight while also improving the structural strength of the wheel. This is the ideal combination of form and function, especially for high-performance vehicles.

    View available fitments for your Mazda using the "Applications" tab!

    Wheel Size and Offset
      • Mult-spoke design based on 5 dual-Y-spokes
      • Available in 18", 19", 20" diameters
      • Lightweight, high performance, single-piece alloy construction
      • Flow Formed Barrel for reduced weight and increased strength
      • Glossy Silver Finish
      • Black Centre Cap with BRAELIN Crest logo
      • Approved for all-weather driving conditions
      • VIA and JWL certifications
      • Style #: BR10
      • Finish: Gloss Silver
      • Pitch Circle Diameter (PCD): 5×114.3mm
      • Hub Bore Diameter: 67.1mm
      • Lug Seat: 60° Conical
      • All-Season Approved: Yes
      Size Offset (mm) Weight (lbs./kg) Load Rating (lbs./kg)
      18"×8.0" +45 21.80/9.9 1587/720
      19"×8.5" +45 24.2/11.0 1521/690
      19"×8.5" +35 25.2/11.4 1521/690
      20"×9.0" +38 27.6/12.5 1797/815
    • Wheel Size,
      Offset
      18"×8.0",
      +45mm
      19"×8.5",
      +45mm
      19"×8.5",
      +35mm
      20"×9.0",
      +38mm
      Mazda3 2004-2023
      Mazdaspeed3 2007-2013
      Mazda5 2006-2017
      Mazda6 2009-2021 2009-2021 2014-2017 2014-2017
      Mazdaspeed6 2006-2007
      CX-3 2016-2022 2016-2022
      CX-30 2020-2024 2020-2024
      CX-5 2013-2023 2013-2023 2013-2023 2013-2023
      CX-50 2023-2024 2023-2024 2023-2024 2023-2024
      CX-7 2007-2012 2007-2012 2007-2012 2007-2012
      CX-9 2016-2023 2007-2023 2007-2023 2007-2023
      CX-90
      RX-8 2004-2011 2004-2011


      Since there are several application combinations possible, we've highlighted the easiest sizes to fit your Mazda. All listed sizes for each vehicle are wheel manufacturer-recommended fitments based on factory vehicle suspension components, and no vehicle modifications should be necessary.

      Should your vehicle have any modifications, then we can no longer guarantee fitment to your vehicle. If your Mazda is not listed, then this wheel does not have an appropriate size available for your vehicle.

    Special Notes

    • Extra processing required; minimum lead time 7 business days prior to shipping availability
    • Not included:
    • Please ensure you select the correct size of wheels for your vehicle
      • If you choose to upsize or downsize, the corresponding tire size must also be changed
      • If you are unsure of your sizing, please contact us and we'll be more than happy to help!
    • Installation Option Available: Please contact us for further details
    • Please review our Shipping Policies prior to purchase

    About BRAELIN Wheels

    Braelin Wheels is a proudly Canadian alloy wheel brand dedicated to covering a wide range of wheel styles and fitments for the luxury, premium passenger vehicles and SUV’s. Their team has over 30 years experience in wheels, and our products are a testament to our enthusiasm and wealth of industry knowledge.

    Braelin is committed to overseeing each step of a wheel’s existence. From the moment it’s conceived on the computer screen to its birth in the casting machine, each step of the manufacturing process is closely monitored. The wheel is seen through a series of certification tests right down to the finishing and packaging, making sure your wheels are constructed with the highest quality control standards in the industry.
