    • Home / Products / BRAELIN BR09 Alloy Wheel (Satin Charcoal) — 22"

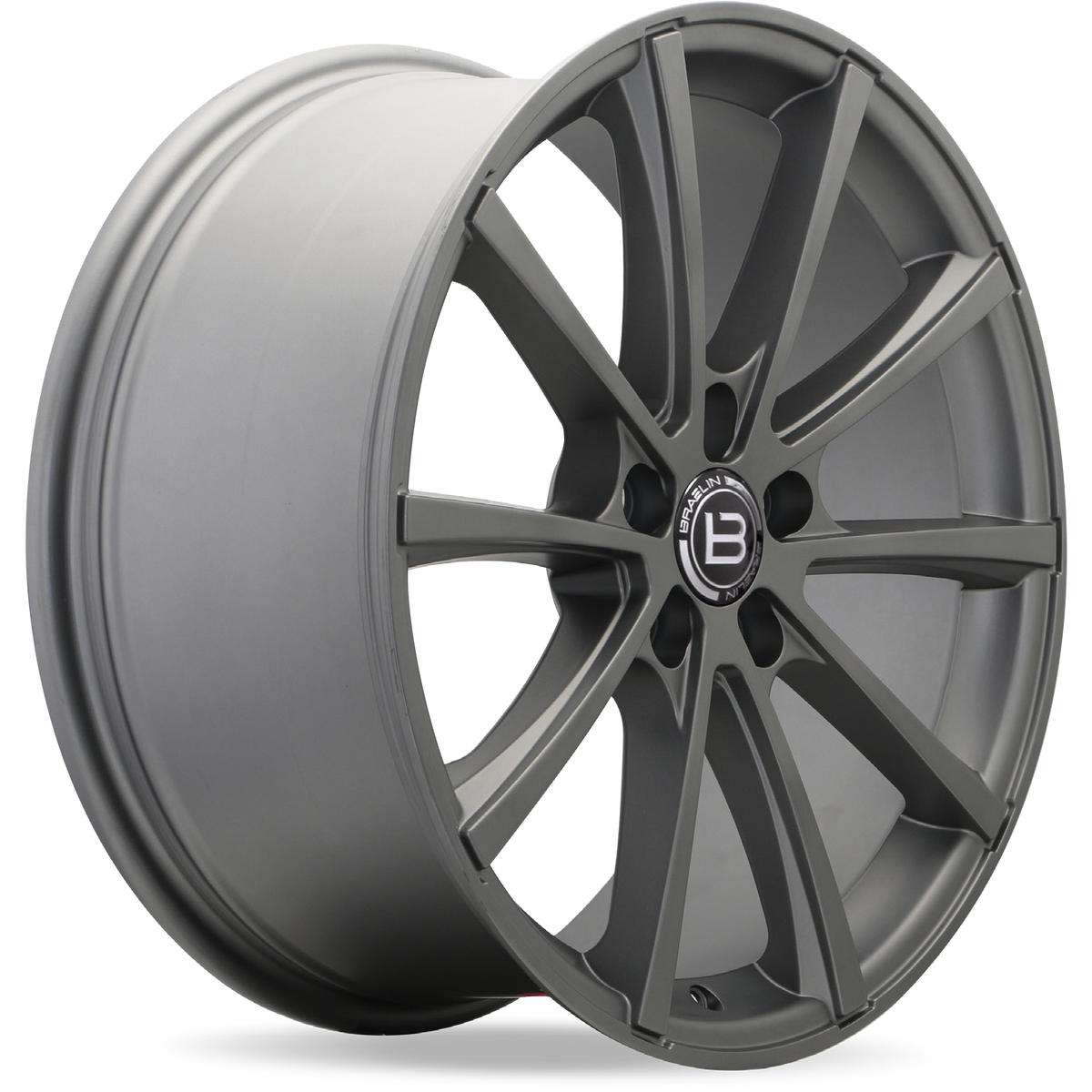

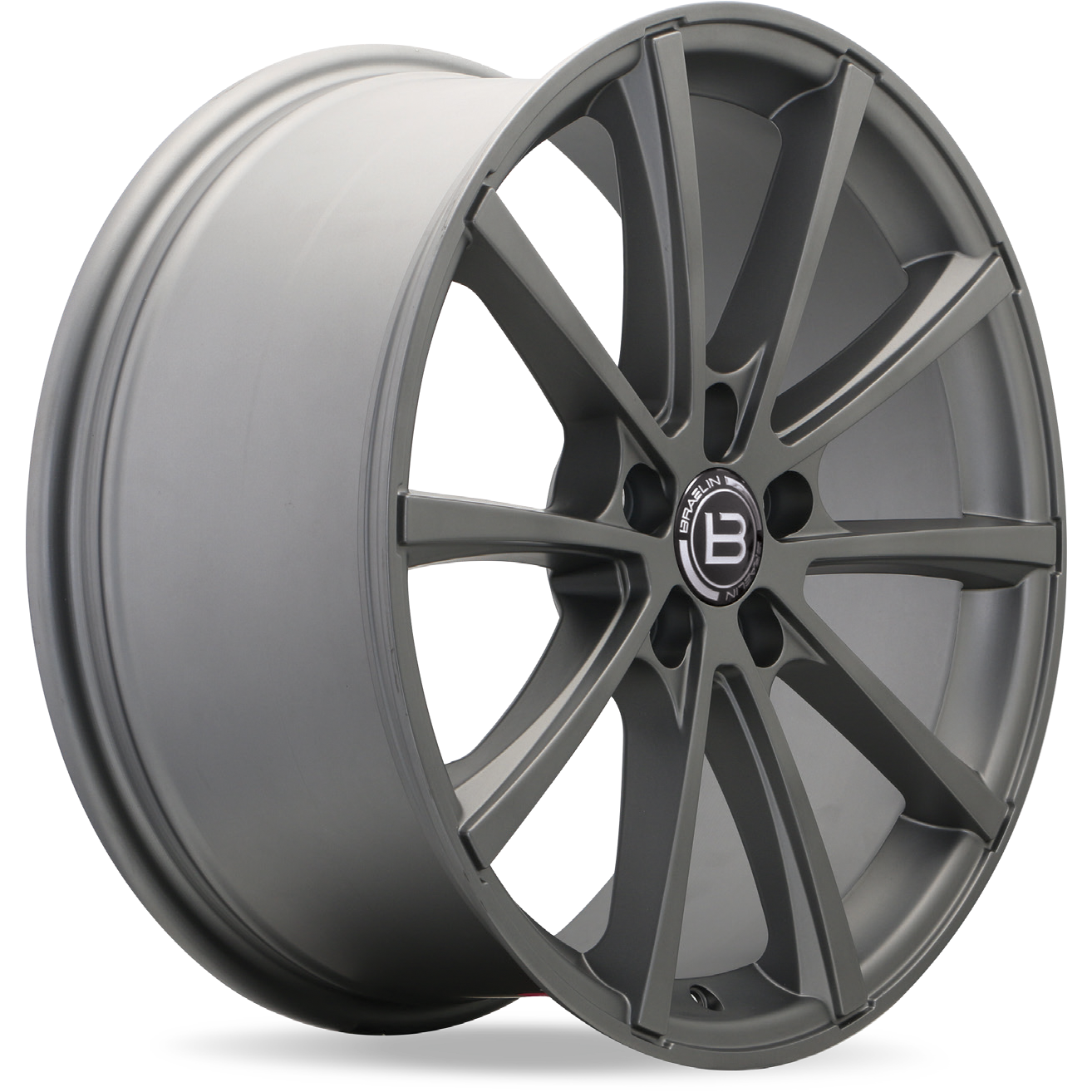

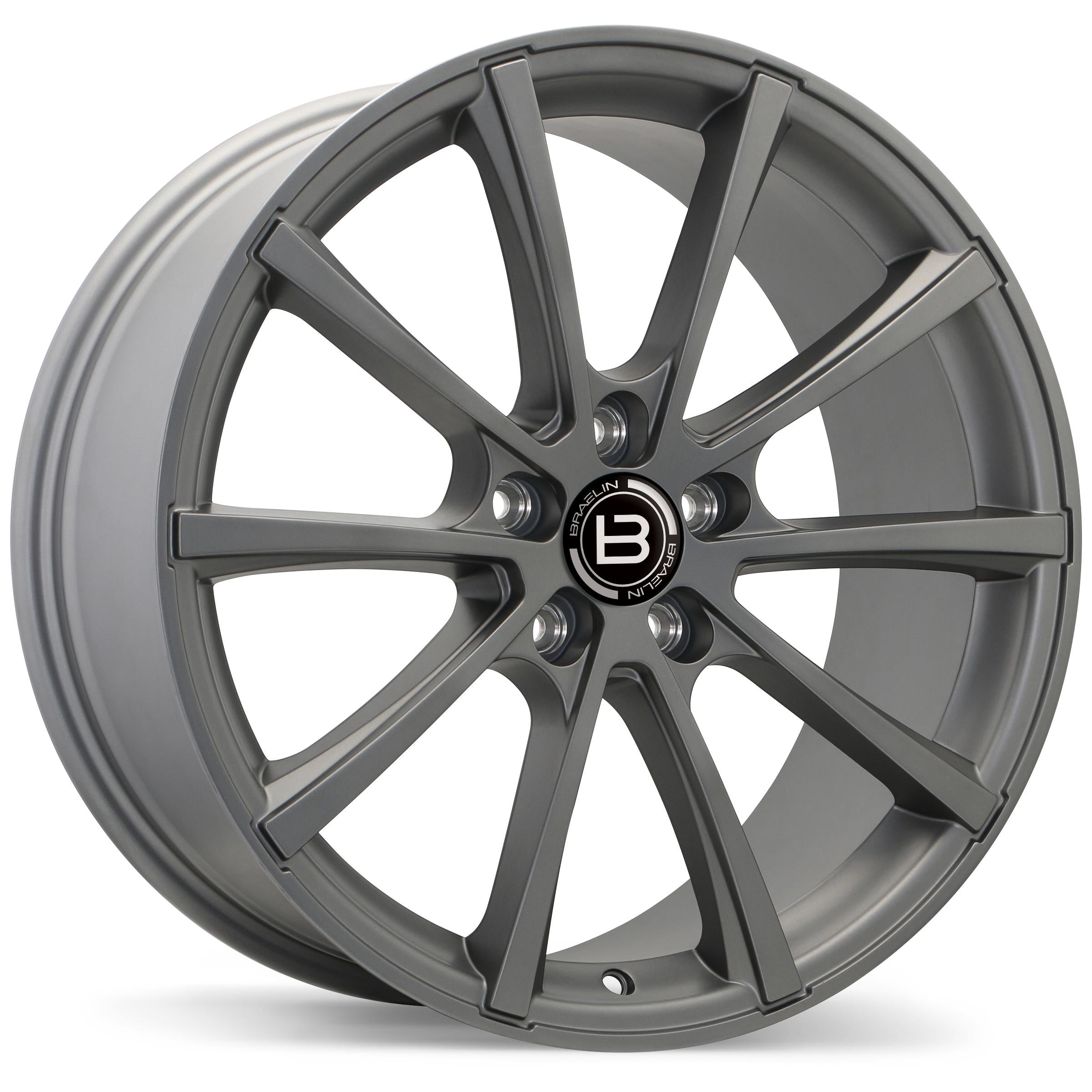

    BRAELIN BR09 Alloy Wheel (Satin Charcoal) — 22"
    BRAELIN BR09 Alloy Wheel (Satin Charcoal) — 22"
    BRAELIN BR09 Alloy Wheel (Satin Charcoal) — 22"
    BRAELIN BR09 Alloy Wheel (Satin Charcoal) — 22"
    Sale

    BRAELIN BR09 Alloy Wheel (Satin Charcoal) — 22"

    $355.00$412.00

    The BRAELIN BR09 alloy wheel captivates a sophisticated and elegant face, balanced with performance inspired details! These wheels are guaranteed to accentuate your vehicle with its Satin Charcoal finish providing the final touches!

    These Braelin alloys are Flow Form constructed, making them much lighter and stronger than a typical cast construction. To achieve Flow Form, the wheels are spun during the molding process, which alters the molecular structure of the aluminum alloy used. This reduces weight while also improving the structural strength of the wheel. This is the ideal combination of form and function, especially for high-performance vehicles.

    View available fitments for your Mazda using the "Applications" tab!

      • Slim and clean 5 V-Spoke design
      • Available in 22" diameter
      • Lightweight, high performance, single-piece alloy construction
      • Flow Formed Barrel for reduced weight and increased strength
      • Satin Charcoal Finish
      • Black Centre Cap with machined BRAELIN Crest logo
      • Approved for all-weather driving conditions
      • VIA and JWL certifications
      • Style #: BR09
      • Finish: Satin Charcoal
      • Pitch Circle Diameter (PCD): 5×114.3mm
      • Hub Bore Diameter: 67.1mm
      • All-Season Approved: Yes
      Wheel Size Offset (mm) Weight (lbs./kg) Load Rating (lbs./kg)
      22"×10.0" +45 33.2/15.1 1984/900
    • Wheel Size,
      Offset      		 22"×10.0",
      +45mm
      CX-9 2016-2023
      CX-90 2024


      Since there are several application combinations possible, we've highlighted the easiest sizes to fit your Mazda. All listed sizes for each vehicle are wheel manufacturer-recommended fitments based on factory vehicle suspension components, and no vehicle modifications should be necessary.

      Should your vehicle have any modifications, then we can no longer guarantee fitment to your vehicle. If your Mazda is not listed, then this wheel does not have an appropriate size available for your vehicle.

    Special Notes

    • Extra processing required; minimum lead time 7 business days prior to shipping availability
    • Not included:
    • Please ensure you select the correct size of wheels for your vehicle
      • If you choose to upsize or downsize, the corresponding tire size must also be changed
      • If you are unsure of your sizing, please contact us and we'll be more than happy to help!
    • Installation Option Available: Please contact us for further details
    • Please review our Shipping Policies prior to purchase

    About BRAELIN Wheels

    Braelin Wheels is a proudly Canadian alloy wheel brand dedicated to covering a wide range of wheel styles and fitments for the luxury, premium passenger vehicles and SUV’s. Their team has over 30 years experience in wheels, and our products are a testament to our enthusiasm and wealth of industry knowledge.

    Braelin is committed to overseeing each step of a wheel’s existence. From the moment it’s conceived on the computer screen to its birth in the casting machine, each step of the manufacturing process is closely monitored. The wheel is seen through a series of certification tests right down to the finishing and packaging, making sure your wheels are constructed with the highest quality control standards in the industry.
