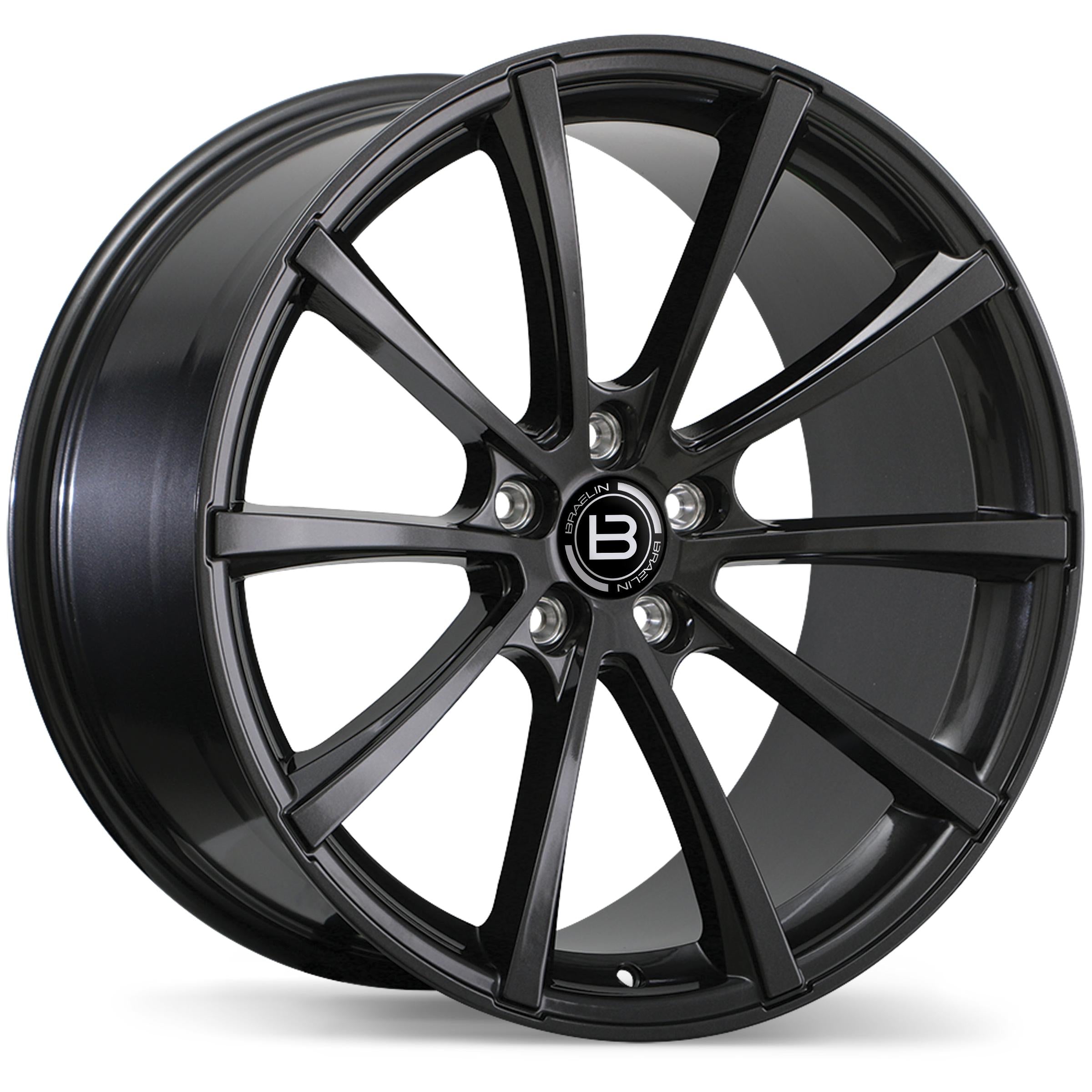

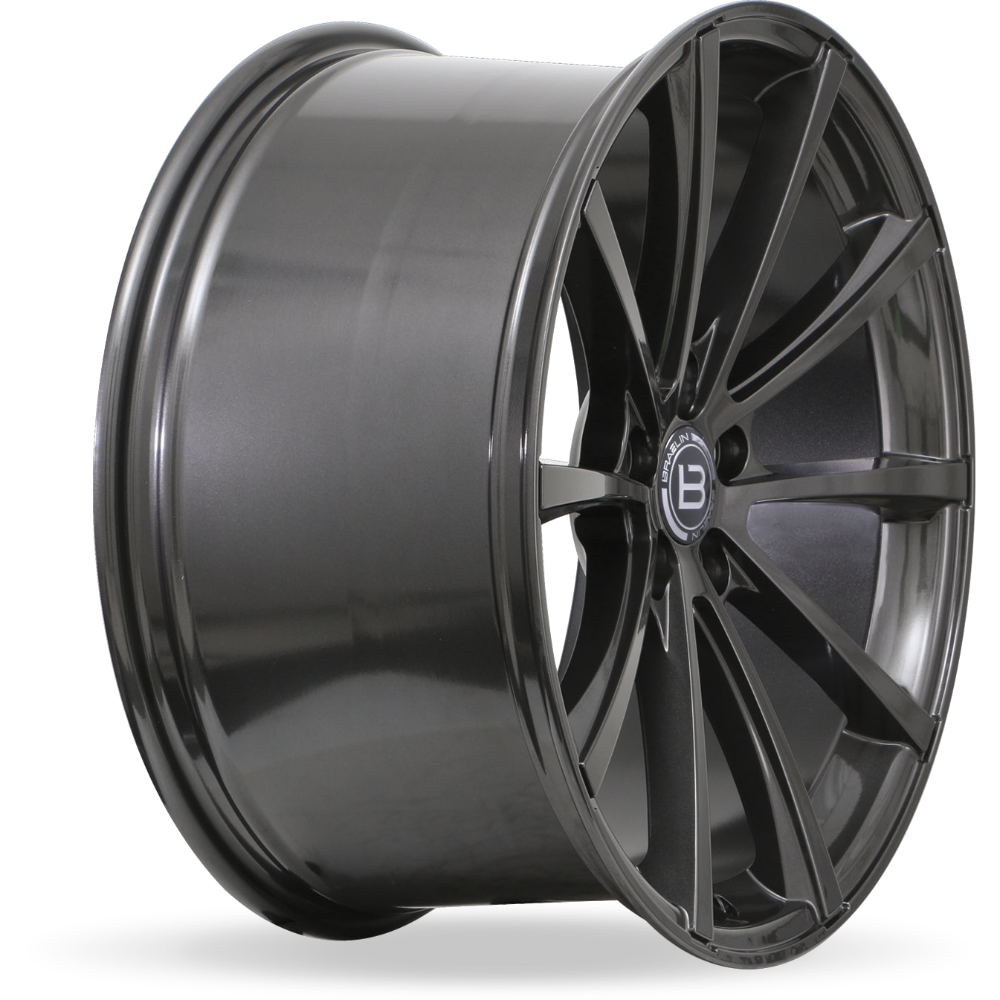

The BRAELIN BR09 alloy wheel captivates a sophisticated and elegant face, balanced with performance inspired details! These wheels are guaranteed to accentuate your vehicle with its Gloss Gunmetal finish providing the final touches!
These Braelin alloys are Flow Form constructed, making them much lighter and stronger than a typical cast construction. To achieve Flow Form, the wheels are spun during the molding process, which alters the molecular structure of the aluminum alloy used. This reduces weight while also improving the structural strength of the wheel. This is the ideal combination of form and function, especially for high-performance vehicles.
Wheel Size | Offset (mm) | Weight (lbs./kg) | Load Rating (lbs./kg) |
19"×8.5" | +45 | 24.8/11.3 | 1609/730 |
19"×8.5" | +35 | 25.8/11.7 | 1609/730 |
19"×8.5" | +25 | 25.8/11.7 | 1609/730 |
20"×8.5" | +45 | 26.5/12.0 | 1609/730 |
20"×8.5" | +35 | 26.9/12.2 | 1609/730 |
20"×8.5" | +25 | 27.5/12.5 | 1609/730 |
22"×10.0" | +45 | 33.2/15.1 | 1984/900 |
Wheel Size, Offset |
19"×8.5", +45mm |
19"×8.5", +35mm |
19"×8.5", +25mm |
20"×8.5", +45mm |
20"×8.5", +35mm |
20"×8.5", +25mm |
22"×10.0", +45mm |
CX-3 | 2016-2022 | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
CX-30 | 2020-2023 | ❌ | ❌ | 2020-2023 | ❌ | ❌ | ❌ |
CX-5 | 2013-2023 | 2013-2023 | ❌ | 2013-2023 | 2013-2023 | ❌ | ❌ |
CX-50 | 2023 | 2023 | ❌ | 2023 | 2023 | ❌ | ❌ |
CX-7 | 2007-2012 | 2007-2012 | ❌ | 2007-2012 | 2007-2012 | ❌ | ❌ |
CX-9 | 2007-2023 | 2007-2023 | 2007-2023 | 2007-2023 | 2007-2023 | 2007-2023 | 2016-2023 |
CX-90 | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | 2024 |
Mazda6 | 2009-2021 | 2014-2017 | ❌ | 2009-2021 | 2014-2017 | ❌ | ❌ |
MX-30 | 2022-2023 | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
RX-8 | 2004-2011 | 2004-2011 | ❌ | 2004-2011 | 2004-2011 | ❌ | ❌ |
Since there are several application combinations possible, we've highlighted the easiest sizes to fit your Mazda. All listed sizes for each vehicle are wheel manufacturer-recommended fitments based on factory vehicle suspension components, and no vehicle modifications should be necessary.
Should your vehicle have any modifications, then we can no longer guarantee fitment to your vehicle. If your Mazda is not listed, then this wheel does not have an appropriate size available for your vehicle.
Special Notes
Braelin Wheels is a proudly Canadian alloy wheel brand dedicated to covering a wide range of wheel styles and fitments for the luxury, premium passenger vehicles and SUV’s. Their team has over 30 years experience in wheels, and our products are a testament to our enthusiasm and wealth of industry knowledge.
